Introducing the HuskyGuard^® Stormwater Filter  – an Innovative Storm Drain Insert

At HalenHardy, we strive to find solutions to customer problems. Our HuskyGuard^® Storm Drain Insert System is our newest product, born from customer-expressed frustrations. We take customer feedback seriously and use it in the design of our products. Our customers had the following problems with their existing storm drain inserts:

• did not effectively filter oily sheens

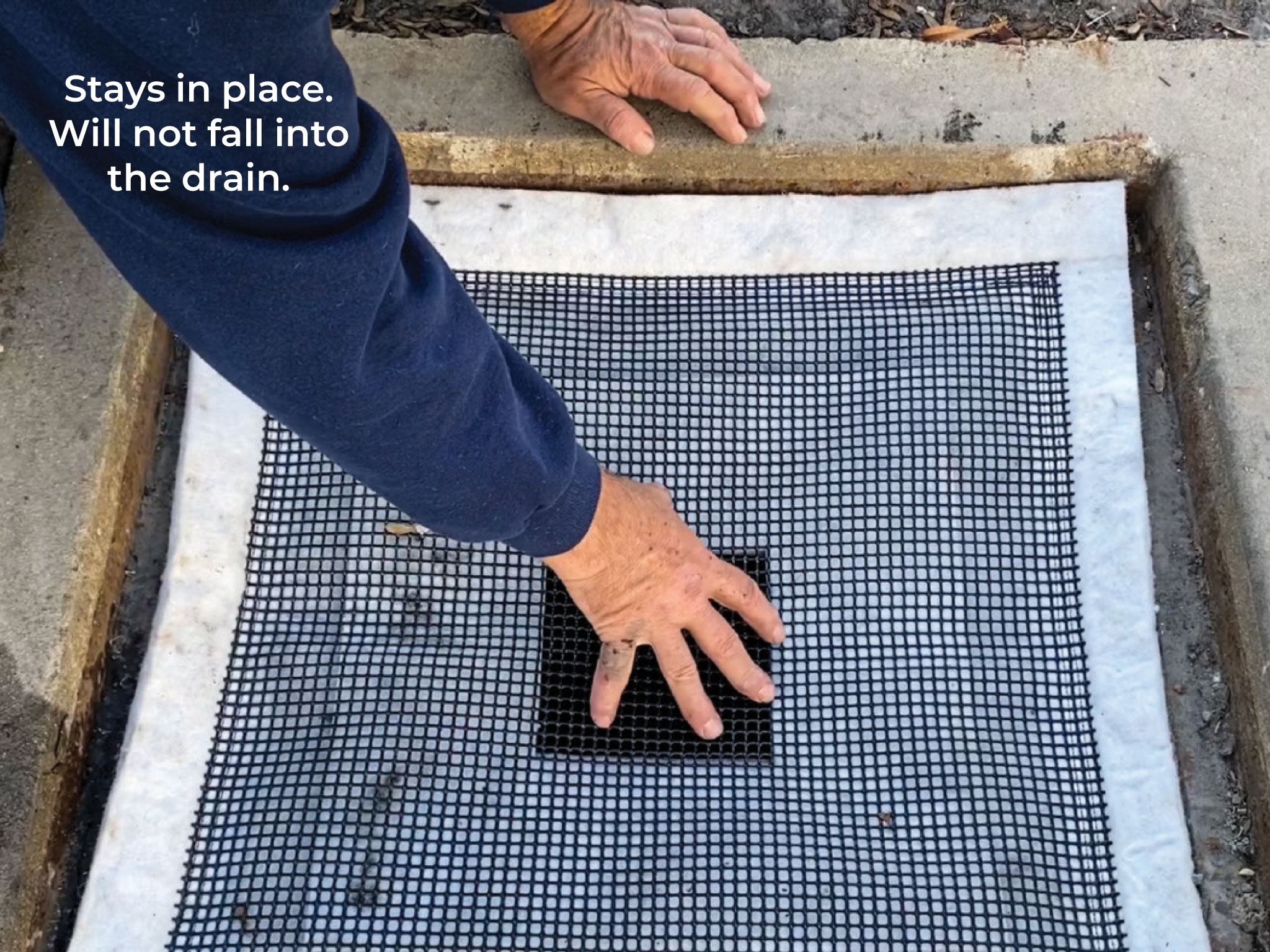

• would easily fall into the storm drain
• high safety risk because they were too heavy to remove (when full of sediment)
• quickly “blinded over” with sediment, causing water to pool
• could not install above existing storm basin filter cartridges, or the expensive cartridges were prematurely clogging

We developed the HuskyGuard^® Storm Drain Insert System to provide our customers with the best solution to prevent stormwater pollution. After numerous real-world uses, HuskyGuard^® has proven its value by meeting our customers’ Best Management Practices (BMPs) requirements, extending the life of expensive, existing cartridges, and being easy to remove and maintain.

HuskyGuard^® Key Attributes:

• Heavy-duty fiberglass reinforced plastic grating holds the HuskyGuard^® Filter in place
• Won’t corrode or rust while being strong enough to hold the weight of the filter, and all the sediment
• Spilltration^® Husky filtration layer for removing oils, fuels, sheens, and sediments

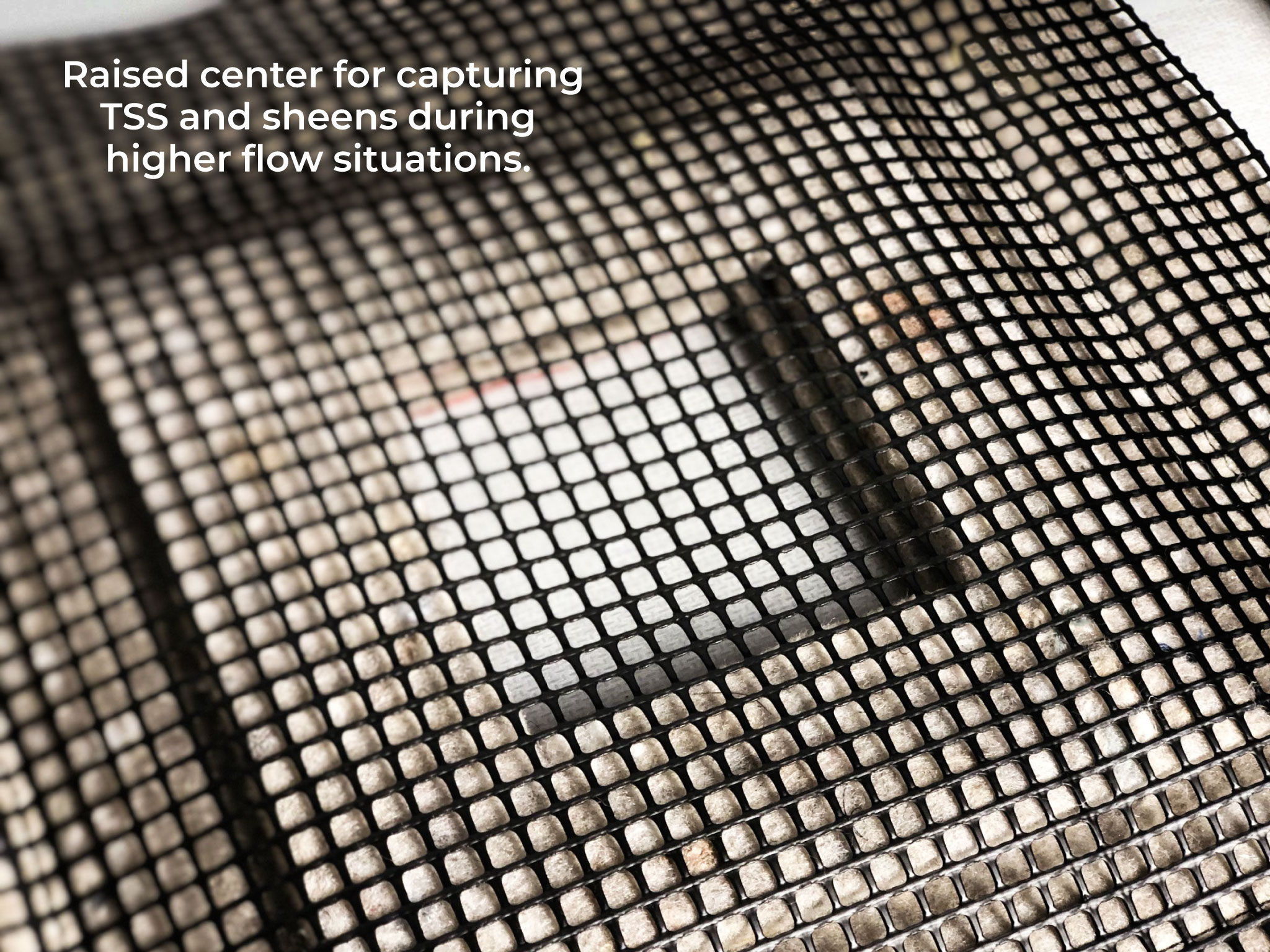

• Raised center for capturing debris during higher flow situations

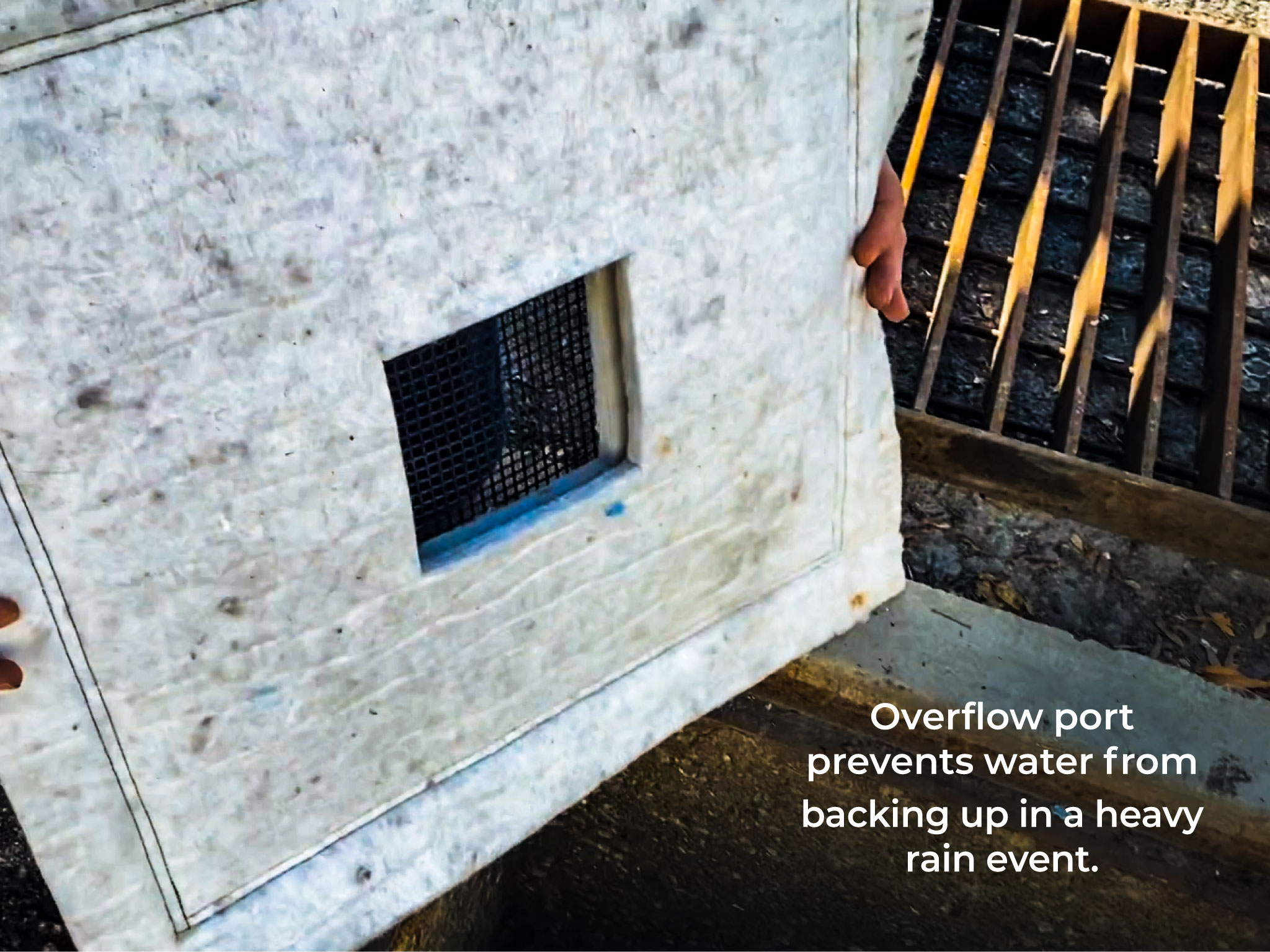

• The overflow port prevents water from backing up in a heavy rain event

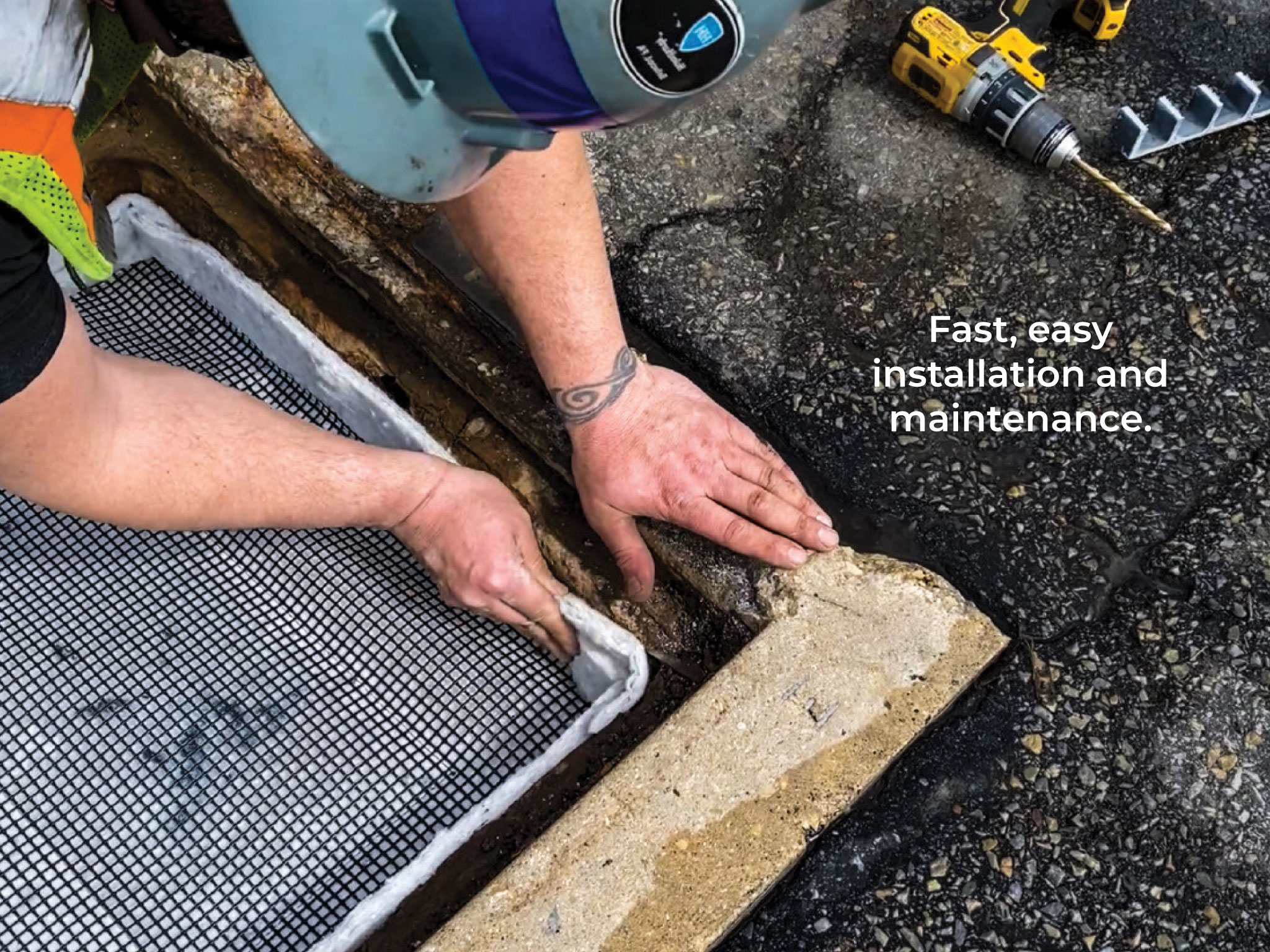

As Easy As 1-2-3: Fast, Easy Inspection & Maintenance in High Traffic Areas

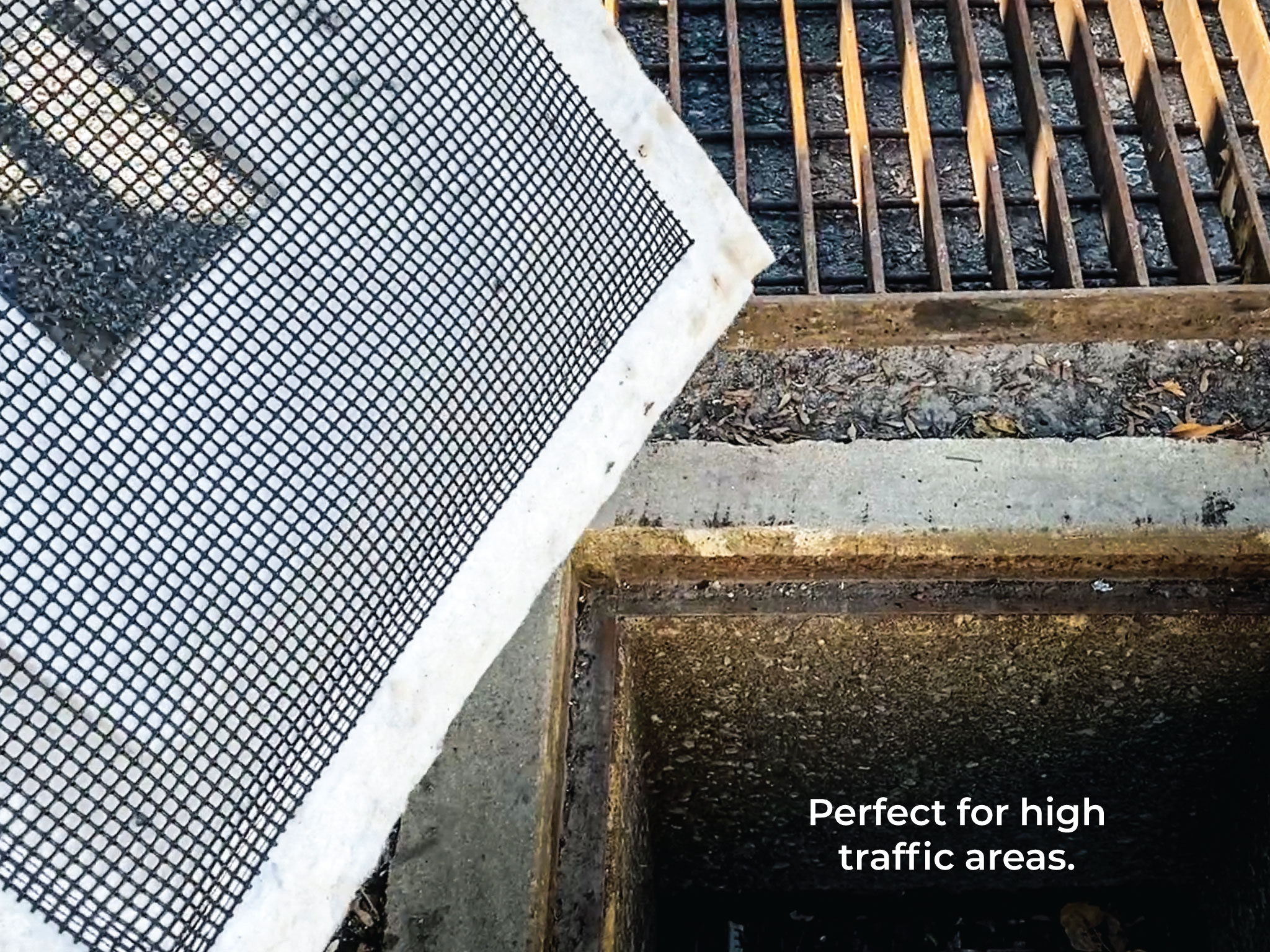

In high-traffic areas, above-grate solutions aren’t practical. But that doesn’t mean that you’re doomed to a life of fishing stinky, messy drain insert bags from the bottom of your storm drain catch basins or calling in expensive vac trucks to suck out sediment and trash. HuskyGuard^® Below-Drain Filters save you hours while keeping your maintenance crew clean and dry.

STEP 1

Install L-Channel brackets

STEP 2

Install pre-cut fiberglass grating

STEP 3

Install HuskyGuard® Filter and replace storm grate

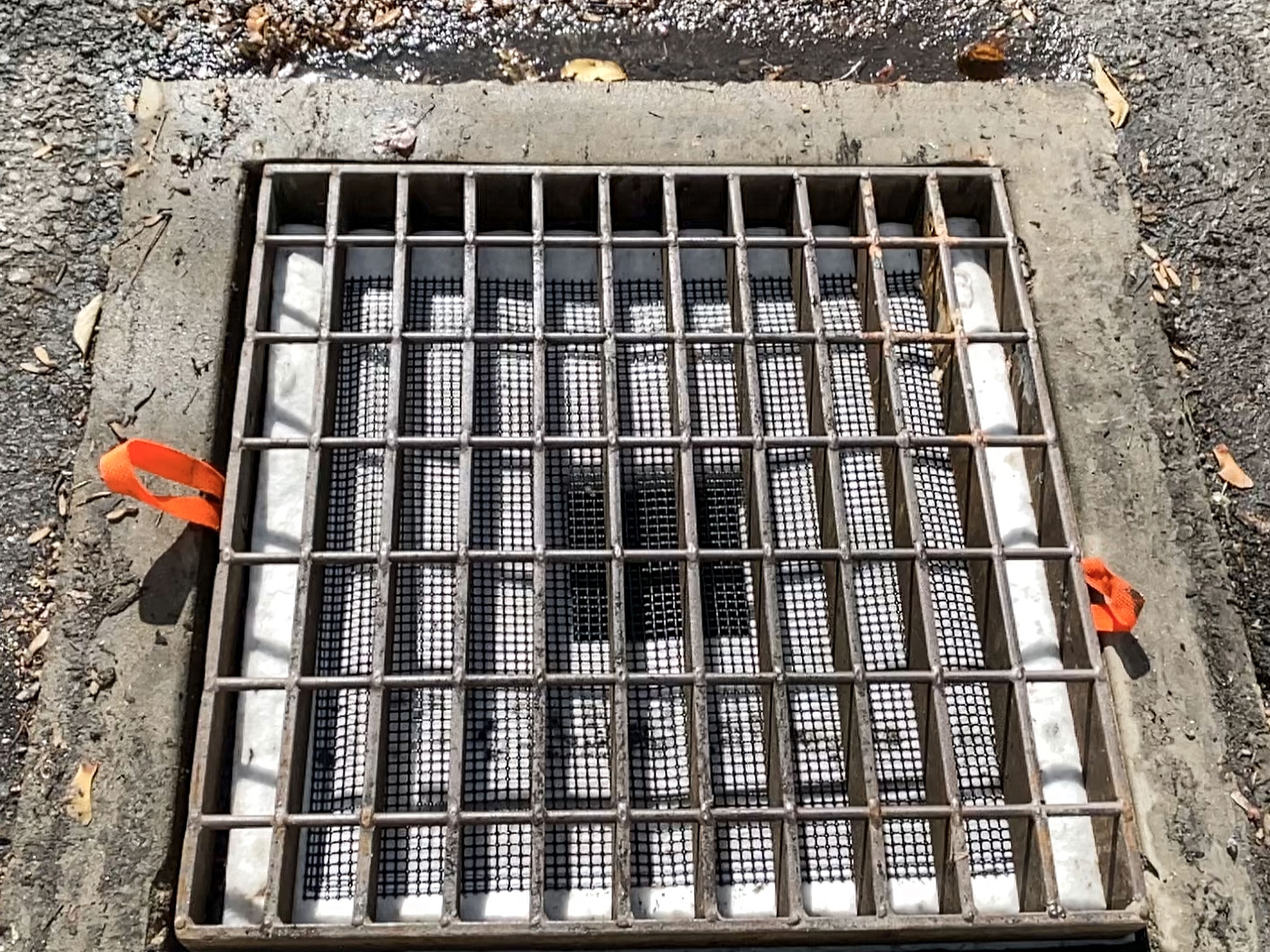

The under-grate filters initially take about 30 minutes to install. The frame attaches to the walls of the storm grate with an electric drill. This frame supports a fiberglass grate that stays in place and holds a replaceable absorbent and filtration media just below the storm grate.

Because dirt and debris accumulate less than two inches from the top of the storm grate, it can be swept or vacuumed with a standard wet/dry vacuum at regular housekeeping intervals. There is no need to remove and replace the grate each time.

The only time you need to lift the grate is to see if the absorbent media has become saturated with oil. (We recommend quarterly checks.) Even though the grate must be lifted for these inspections, there’s no risk of the absorbent falling to the bottom – which means the whole process takes less than five minutes.

Learn More:

Blog: Prevent Silt and Oil Sheens from Being Discharged into the Harbor with HuskyGuard^®

BMPs: Innovative Storm Drain Best Management Practice

Download: Cost Comparison Worksheet, HuskyGuard^® Spec Sheet

Regulations:

• Stormwater Pollution Prevention Plans (SWPPP)
• Stormwater 40 CFR 122: National Pollutant Discharge Elimination System (NPDES) Permitting Program
• SPCC 40 CFR 112: Spill Prevention Control and Countermeasures (SPCC) rule

Videos

Product Specifications

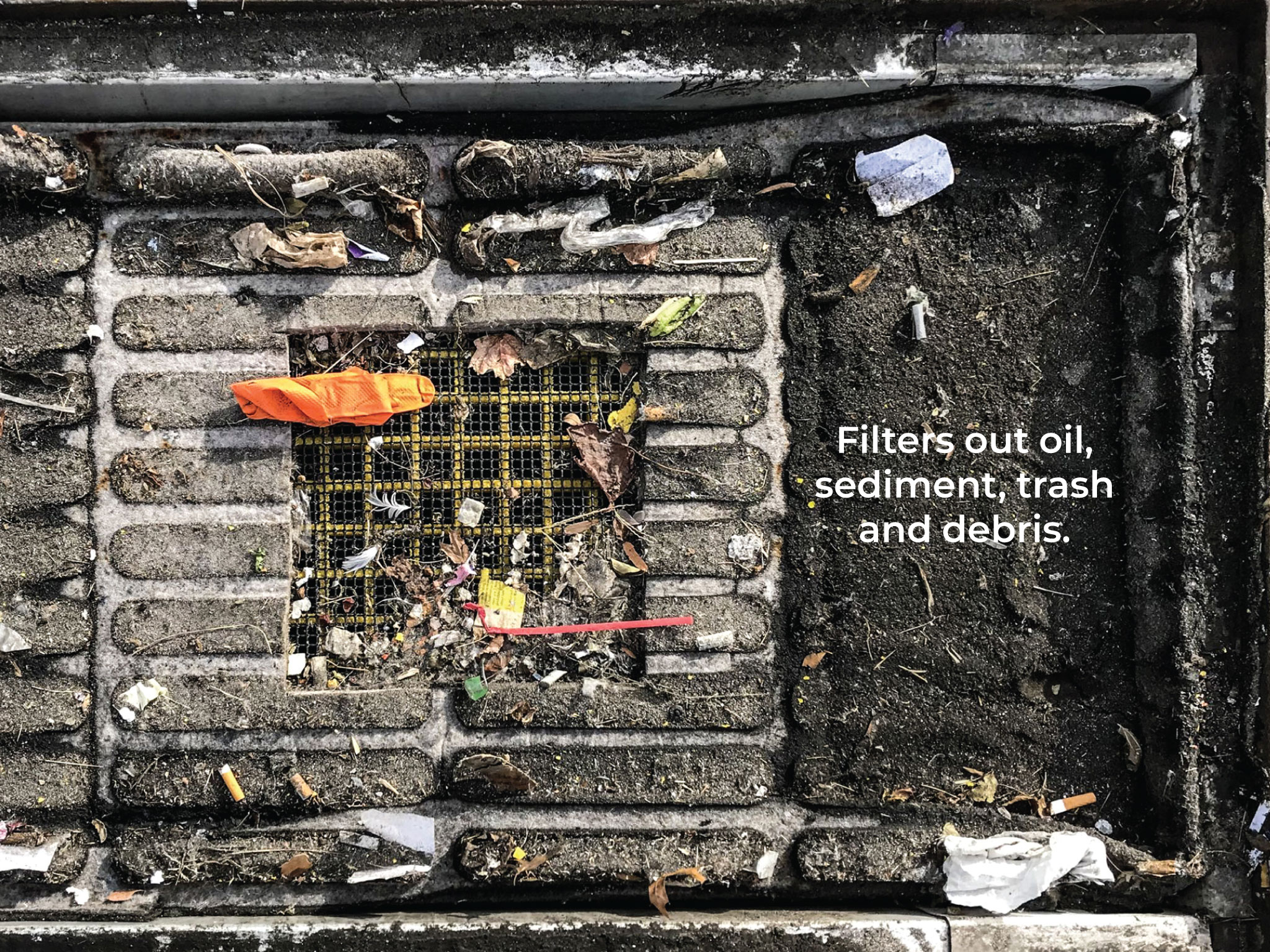

Substance Filtered:  Oils, Sediments, Debris and Trash

Dimensions:  Custom

For Drain Sizes: All

Overflow Hole Size:  6” x 6”

Sold as:  Each

Recycled Content: Spilltration^® Husky fibers are 100% recycled content.

UV Resistant:  Yes

Download Product Specs →

Compliance and Restrictions

• Husky products do NOT float. NOT for use on water
• DO NOT use with acids, bases or oxidizers
• Dispose of used product in compliance with local, state & federal regulations
